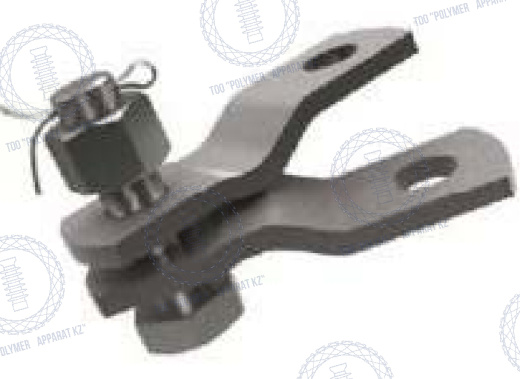

Назначение
Для обеспечения перехода от арматуры одного ряда нагрузок к другому.Технические характеристики
|

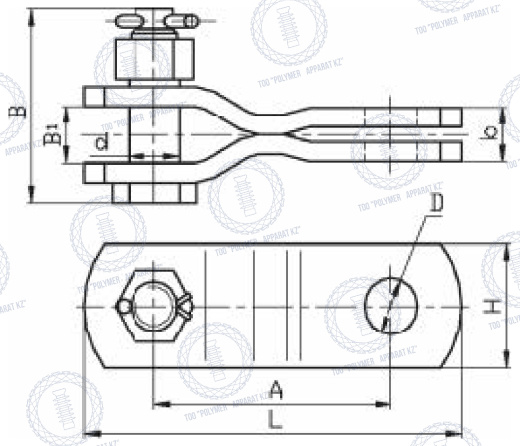

Обозначение |
|
|
|
Размеры, мм |
|
|
|
Масса, кг |
Разрушающая нагрузка Р, кН (т.с.), не менее |
|
|
|
|
|
|
|
|
|
|
|||
|
|
A |
B |
B 1 |
b |
d |
D |
L |
H |
|
|
|
ПРТ-7/12-2 |
95 |
78 |
23 |
16 |
20 |
17 |
142 |
50 |
0,66 |
70(7) |
|
ПРТ-7/16-2 |
95 |
78 |
26 |
25 |
145 |
45 |
0,96 |
70 (7) |
||
|
ПРТ-7/21-2 |
105 |
83 |
29 |
28 |
160 |
45 |
1,15 |
70 (7) |
||
|
ПРТ-12/7-2 |
95 |
65 |
17 |
22 |
16 |
23 |
142 |
50 |
0,54 |
70(7) |
|
ПРТ-12/16-2 |
110 |
83 |
26 |
25 |
175 |
60 |
1,60 |
120 (12) |
||
|
|
|
|
|
|
|
|
|
|
||
|
ПРТ-12/21-2 |
110 |
88 |
29 |
|
28 |
|
175 |
60 |
1,70 |
120 (12) |
|
ПРТ-12/45-2 |
150 |
115 |
42 |
40 |
220 |
63 |
3,43 |
120 (12) |
||
|
ПРТ-16/12-2 |
110 |
78 |
23 |
25 |
22 |
26 |
175 |
60 |
1,267 |
120 (12) |
|
ПРТ-16/21-2 |
115 |
88 |
29 |
28 |
185 |
63 |
1,90 |
160 (16) |
||
|
ПРТ-16/25-2 |
125 |
100 |
34 |
32 |
200 |
70 |
2,43 |
160 (16) |
||
|
ПРТ-16/30-2 |
125 |
105 |
38 |
36 |
200 |
80 |
2,56 |
160 (16) |
||
|
ПРТ-16/45-2 |
145 |
115 |
42 |
40 |
230 |
80 |
3,94 |
160 (16) |
||
|
ПРТ-21/12-2 |
110 |
78 |
23 |
28 |
22 |
29 |
175 |
60 |
1,50 |
120 (12) |
|
ПРТ-21/16-2 |
115 |
83 |
26 |
25 |
185 |
63 |
1,80 |
160 (16) |
||
|
ПРТ-21/30-2 |
140 |
115 |
38 |
36 |
215 |
70 |
3,67 |
210 (21) |
||
|
ПРТ-21/45-2 |
150 |
120 |
42 |
40 |
235 |
80 |
4,80 |
210 (21) |
||
|
ПРТ-21/60-2 |
170 |
132 |
47 |
45 |
265 |
95 |
6,15 |
210 (21) |
||
|
ПРТ-25/12-2 |
135 |
78 |
23 |
32 |
22 |
34 |
205 |
60 |
1,74 |
120 (12) |
|
ПРТ-25/16-2 |
125 |
83 |
26 |
25 |
200 |
70 |
1,98 |
160 (16) |
||
|
|
|
|
|
|
|
|
|
|
||
|
ПРТ-25/21-2 |
140 |
98 |
29 |
|
28 |
|
215 |
63 |
2,96 |
210 (21) |
|
ПРТ-25/60-2 |
170 |
132 |
47 |
45 |
270 |
95 |
6,25 |
250 (25) |
||
|
ПРТ-30/12-2 |
140 |
78 |
23 |
36 |
22 |
38 |
210 |
60 |
1,90 |
120 (12) |
|
ПРТ-30/21-2 |
140 |
98 |
29 |
28 |
215 |
70 |
3,10 |
210 (21) |
||
|
ПРТ-30/60-2 |
175 |
137 |
47 |
45 |
275 |
95 |
8,30 |
300 (30) |
||
|
ПРТ-35/21-2 |
150 |
98 |
29 |
38 |
28 |
40 |
230 |
70 |
3,60 |
210 (21) |
|
ПРТ-45/7-1 |
72 |
130 |
17 |
40 |
16 |
42 |
132 |
63 |
2,42 |
70 (7) |
|
ПРТ-45/12-2 |
150 |
78 |
23 |
40 |
22 |
42 |
230 |
63 |
2,10 |
120 (12) |
|
|
|
|
|
|
|
|
|
|
|
|
|
ПРТ-45/30-2 |
160 |
120 |
38 |
|
36 |
42 |
250 |
75 |
5,71 |
300 (30) |
|
ПРТ-60/45-2 |
165 |
130 |
42 |
45 |
40 |
47 |
275 |
90 |
6,22 |
450 (45) |
|
ПРТ-120/60-1 |
275 |
152 |
47 |
65 |
45 |
67 |
430 |
140 |
17,90 |
600 (60) |
|
ПРТ-120/90-1 |
275 |
175 |
58 |
58 |
67 |
450 |
140 |
20,80 |
900 (90) |
|
